Blow mold cleaning with dry ice blasting
Blow molds for bottles, containers and industrial plastic parts accumulate release agent residue, gas fouling in vents and plate-out. Conventional cleaning requires disassembly of heavy multi-cavity molds and manual work with solvents or steel brushes. For producers running 24/7, that is repeatedly expensive.
Cold Jet dry ice blasting cleans blow molds in-press without disassembly, without solvents and non-abrasively on the mold finish. This article covers how the technology works for blow mold applications.
Why traditional blow mold cleaning falls short
Blow molds are often complex with multi-cavities, vents and a polished interior for product finish. Manual scrubbing with steel brushes attacks the polish and causes scratching that shows up in the end product. Solvents require rinsing and drying.
Disassembly of a large multi-cavity blow mold needs crane assistance and 30 to 60 minutes of extra labor on top of the cleaning itself. For plants with multiple molds and a weekly maintenance cycle, that is structural production loss.
How Cold Jet works on blow molds

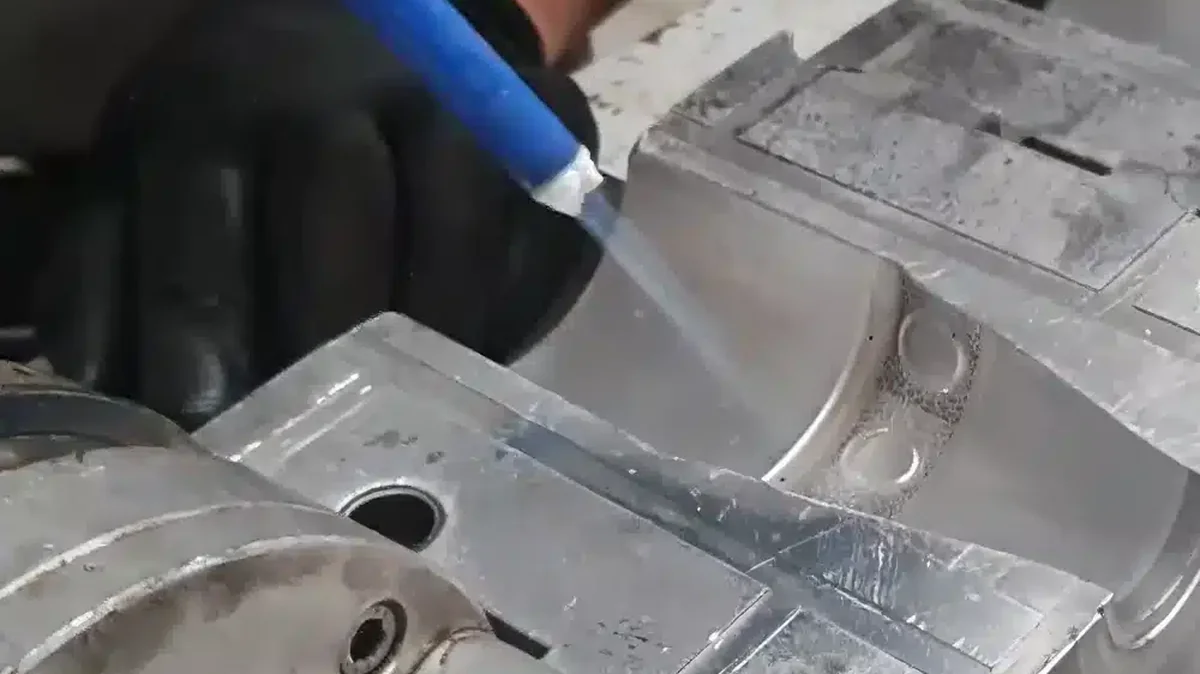

The mold stays in the press; the operator opens it and directs the Cold Jet blast gun at the mold surface. Pellets clean through thermal shock and sublimation without attacking the polished finish. Vents are cleared by the gas expansion of the sublimating dry ice.
For PET bottle blow molds the PCS Ultra runs on fine pellets (0.3 to 1 mm) without risk to the mold finish. For heavier industrial blow molds, the PLT Ultra with higher pressure can be deployed.
Concrete benefits for blow molding
- ✓In-press cleaning without mold disassembly
- ✓Non-abrasive; polished finish stays intact
- ✓Cleans vents that are unreachable by hand
- ✓No solvents or rinse steps
- ✓Safe for mold cooling (water channels untouched)
- ✓Cycle time saving of 60 to 80 percent
- ✓Suitable for PET, PE, PP and industrial blow molding
- ✓Extends mold service life
Applications per blow molding type
| Process | Typical application | Recommended machine |
|---|---|---|
| Extrusion blow molding (containers) | Multi-cavity cleaning, plate-out | PCS Ultra / PLT Ultra |
| Injection blow molding (small bottles) | Cavity cleaning, vents | PCS Ultra |
| Stretch blow molding (PET bottles) | Preform and mold cleaning | PCS Ultra / i³ MicroClean 2 |
| Extrusion blow of industrial tanks | Large cavities, resin residue | PLT Ultra |
| Multi-layer blow molding | Inter-layer fouling | PCS Ultra fine pellets |
Recommended Cold Jet machines for blow molding
For PET stretch blow molding and injection blow, the PCS Ultra works optimally with fine pellets. For heavy industrial extrusion blow molding we recommend the PLT Ultra with 17.2 bar working pressure. The i³ MicroClean 2 suits delicate preform molds and small bottle molds.
Related mold cleaning applications
- ✓In-press cleaning with dry ice blasting
- ✓Screw and barrel cleaning with dry ice blasting
- ✓Rubber mold cleaning with dry ice blasting
Want Cold Jet dry ice blasting for your blow molding production? Schedule a no-obligation on-site demo.
Request a demo →Frequently asked questions
What are typical contaminants on a blow mold?
Release agent residue, gas fouling in vents, plate-out (silicone, wax) and on some plastics carbonized residue in mold seams. For bottle production and industrial containers these are recurring maintenance points.
How long does blow mold cleaning take with Cold Jet?
Typically 20 to 60 minutes per mold depending on complexity and the number of cavities. Manual cleaning often takes 2 to 4 hours including disassembly. Cycle time savings up to 80 percent are realistic.
Does dry ice blasting work on all blow molding types (extrusion, injection blow, stretch blow)?
Yes, for all three blow processes. For extrusion blow molds with large cavities we recommend the PCS Ultra. For stretch blow molding of PET bottles, both PCS Ultra and i³ MicroClean 2 work well.
Does dry ice blasting damage mold cooling?
No, Cold Jet works on the mold surface without moisture or chemistry. Water cooling channels stay closed and untouched. No risk of cooling blockage or channel corrosion.
Can blow molds be cleaned in-press?
Yes, for most blow molds in-press cleaning is possible. The operator opens the press, cleans with Cold Jet, then closes it again. Production restarts within an hour. For very hot molds we recommend a short cooling pause.
